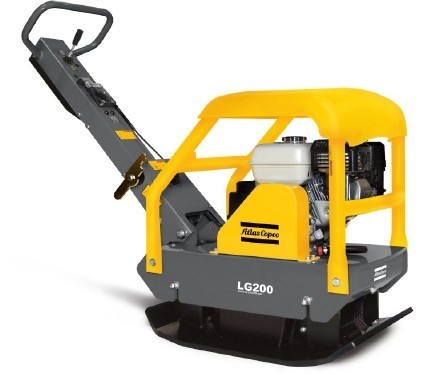

阿特拉斯-科普柯/戴納派克LG200雙向平板夯
Specifications
阿特拉斯-科普柯/戴納派克LG200雙向平板夯
High speed and world-class compaction efficiency make our forward and reversible plates excellent for compacting medium to deep layers of granular soils. The high speed, balanced design and hydraulic control system contributes to easy, precise handling on the roughest of surfaces or for spot compaction.
Features & benefits
Hydraulic forward/reverse lever
Engines with low fuel consumption and emissions
Heavy-duty protection frame and impact resistant steel covers protect engine and transmission.
High quality bottom plate
Applications
Cobbles and boulders
Sand and Gravel
Silt
Technical data
單位:
公制
英制
阿特拉斯-科普柯/戴納派克LG200雙向平板夯
| 技術(shù)規(guī)格 | |
|---|---|
| 工作質(zhì)量 | 217 kg |
| 離心力 | 36 kN |
| 銘牌寬度 | 500 mm |
| 發(fā)動機品牌 | 本田 |
| 功率 | 4.8 kW |
| 速度 | 25 m/min |
| 振幅 | 1.9 mm |
| 頻率 | 65 Hz |
| 保證的聲功率級 | 105 dB(A) |
| 操作員耳邊聲壓級 | 90 dB(A) |
| 震動釋放值 | 3.5 m/s2 |
